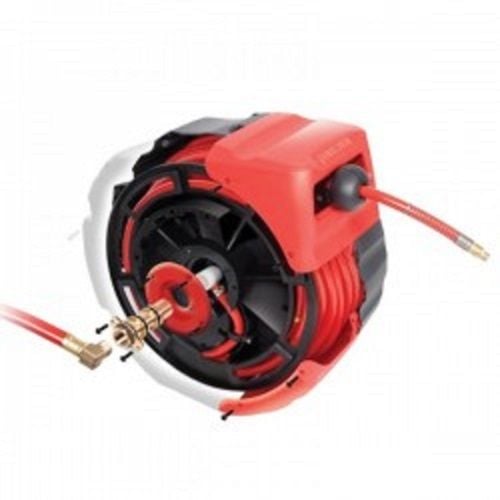

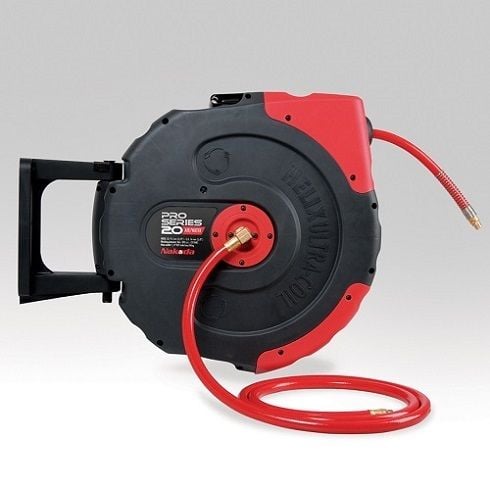

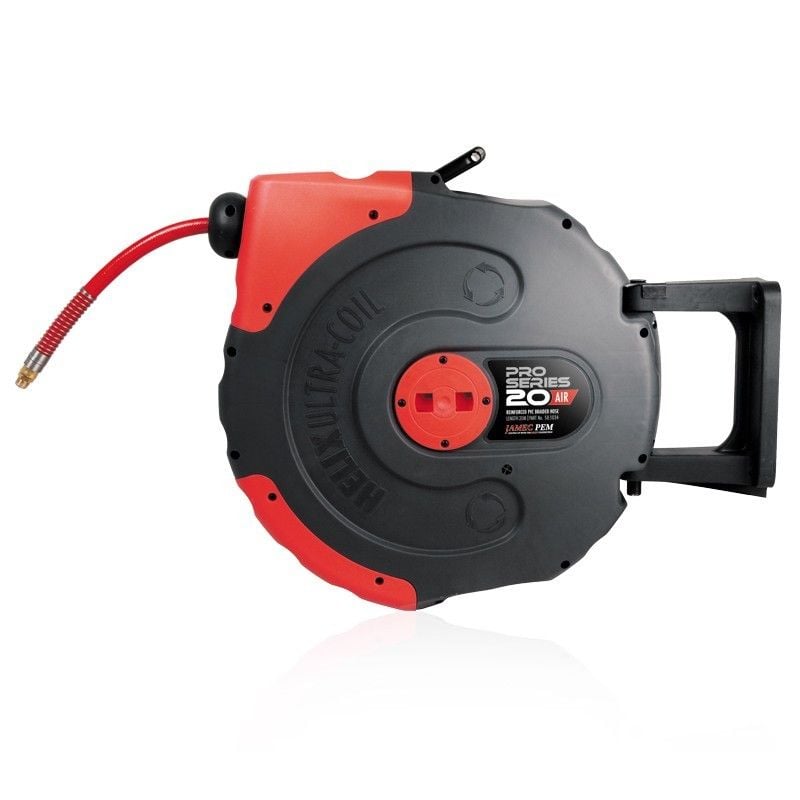

Jamec Pem Pro Series HELIX 20m Air Hose Reel With Reinforced PVC Hose
Thumbnail
Thumbnail
Thumbnail

Jamec Pem Pro Series HELIX 20m Air Hose Reel With Reinforced PVC Hose

Item Code: 58.1034

With the unique HELIX Ultra-Coil self layering hose system, combined with a precision machined solid brass central spindle, the Jamec Pem Pro Series hose reels are ideally suited for the trade or industrial workshop.

  • High impact tough and durable polypropylene construction
  • Fully enclosed weather resistant and UV stalilised outer case protects the hose and inner drum assembly against dirt and other contaminants
  • Auto lock and rewind mechanism provides positive hose latching every full revolution of the hose drum
  • 2 metre length leader hose with quality brass fittings included as standard
  • Heavy duty mounting bracket with fixed in-line or optional 180 degree swivel mount is suitable for wall or overhead mounting
  • Convenient carry handle located on the top panel for removing and refitting the hose reel from the mounting bracket
  • Adjustable hose stopper
  • Includes wall mounting bracket
  • Brass fittings

Specifications:

  • Hose Length: 20 m
  • Hose I.D.:  9.5 mm, 3/8 "
  • Hose O.D.: 16 mm, 5/8 "
  • Leader Hose Length: 2 m with 1/4 " BSP male fitting
  • Hose Material: Reinforced PVC braided
  • Reel/Case Type: Retractable/polypropylene
