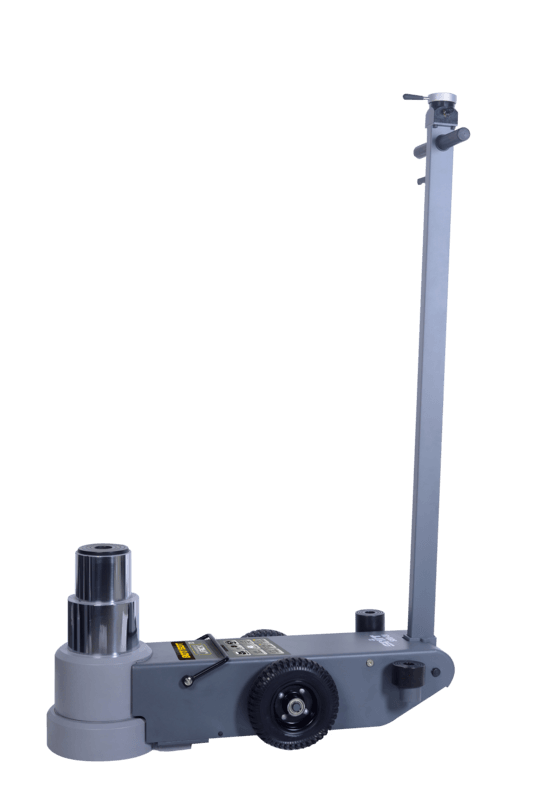

Snit 2-Stage Pneumatic Hydraulic Jack – 80T / 50T

The two-stage telescopic hydraulic system provides the flexibility to handle different lifting requirements while delivering an enormous maximum first-stage capacity of 80 tonnes. This makes the jack particularly suitable for workshops and service operations working with some of the heaviest vehicles and equipment.

With a minimum height of 230mm and a maximum lifting height of 563mm, the jack provides a substantial 333mm overall lifting range. This combination of high capacity and extended lifting height makes it an excellent choice for heavy vehicles and machinery with higher chassis or lifting points.

Pneumatic hydraulic operation provides efficient lifting while reducing the physical effort required when handling extremely heavy loads. Designed for professional use, the S80-2J is an excellent addition to heavy vehicle workshops, commercial tyre service centres, fleet maintenance facilities and industrial servicing operations.

Features & Benefits:

• Exceptionally heavy-duty professional pneumatic hydraulic jack
• Two-stage telescopic lifting system
• 80 tonne / 50 tonne stage capacities
• Massive 80 tonne maximum lifting capacity
• Designed for extremely heavy commercial and industrial applications
• Minimum height of 230mm
• Maximum lifting height of 563mm
• Substantial 333mm overall lifting range
• Two-stage design provides versatility across different lifting requirements
• Pneumatic hydraulic operation for efficient heavy-load lifting
• Ideal for heavy commercial vehicle tyre and wheel servicing
• Suitable for large trucks, trailers and heavy equipment
• Excellent for fleet and industrial maintenance operations
• Designed for demanding professional workshop environments

Suitable Applications:

• Heavy commercial trucks
• Truck and trailer servicing
• Heavy-duty tyre changing
• Fleet maintenance
• Heavy plant and machinery
• Agricultural equipment
• Industrial vehicles and equipment
• Heavy mechanical workshops
• Professional commercial tyre service centres

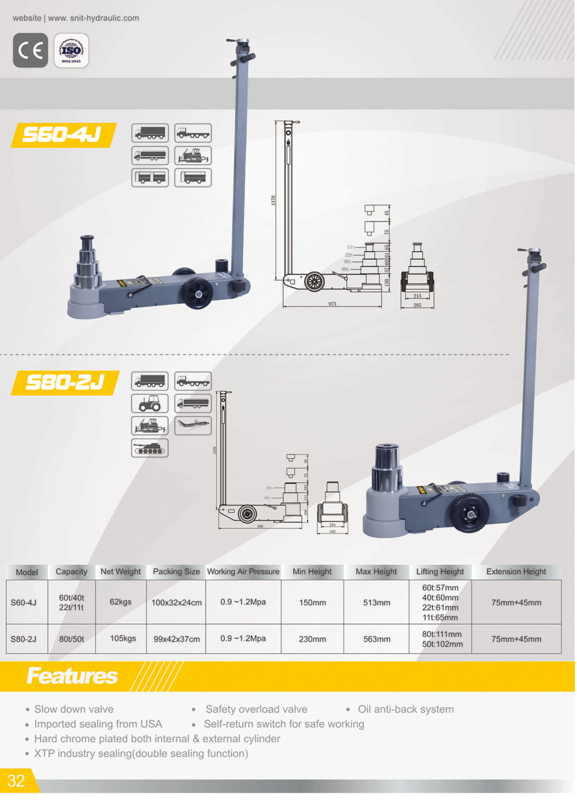

Specifications:

• Item Code: S80-2J
• Brand: Snit
• Product Type: 2-Stage Pneumatic Hydraulic Jack
• Stage 1 Capacity: 80 Tonne
• Stage 2 Capacity: 50 Tonne
• Minimum Height: 230mm
• Maximum Height: 563mm
• Overall Lifting Range: 333mm
• Operation: Pneumatic Hydraulic
• Configuration: 2 Stage

Always operate lifting equipment in accordance with the manufacturer's instructions and rated capacity. A hydraulic jack is designed for lifting only; appropriately rated support equipment should be used before working beneath a raised load.
