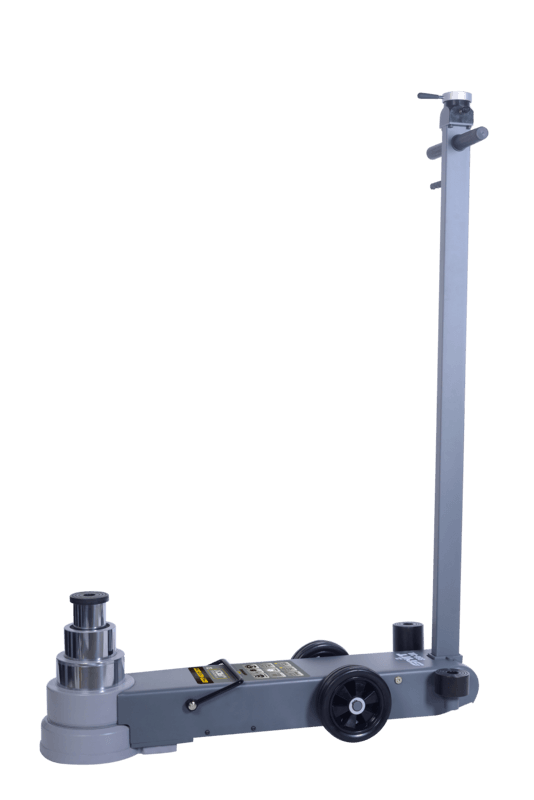

Snit 3-Stage Pneumatic Hydraulic Jack – 60T / 40T / 20T – Low Long Body

Featuring a three-stage telescopic lifting system with capacities of 60 tonne, 40 tonne and 20 tonne, this model combines exceptional lifting capacity with a low-profile, long-body configuration. This makes it particularly useful when working beneath large commercial vehicles and heavy equipment where access to the designated lifting point can be restricted.

The Low Long Body design provides a minimum height of just 150mm, offering improved access beneath lower lifting points while retaining an enormous maximum first-stage capacity of 60 tonnes. The three-stage system extends to a maximum height of 447mm, providing a versatile 297mm overall lifting range.

Pneumatic hydraulic operation allows heavy loads to be raised efficiently, making the S60-3JL particularly well suited to busy commercial tyre shops, heavy vehicle workshops, fleet maintenance facilities and industrial service operations.

Features & Benefits:

• Professional heavy-duty pneumatic hydraulic jack
• Three-stage telescopic lifting system
• 60 tonne / 40 tonne / 20 tonne stage capacities
• Massive 60 tonne maximum lifting capacity
• Low Long Body configuration for improved access beneath heavy vehicles
• Low 150mm minimum height
• Maximum lifting height of 447mm
• 297mm overall lifting range
• Three-stage design provides excellent versatility
• Pneumatic hydraulic operation for efficient heavy-duty lifting
• Long-body design assists with positioning beneath larger vehicles and equipment
• Ideal for heavy vehicle tyre and wheel servicing
• Suitable for trucks, trailers, buses and heavy machinery
• Designed for demanding professional workshop environments
• Excellent for fleet and commercial maintenance operations

Suitable Applications:

• Heavy commercial trucks
• Truck and trailer servicing
• Bus and coach maintenance
• Heavy-duty tyre changing
• Fleet maintenance workshops
• Agricultural machinery
• Heavy plant and equipment
• Industrial vehicle servicing
• Professional tyre service centres
• Applications requiring a lower-profile heavy-duty jack

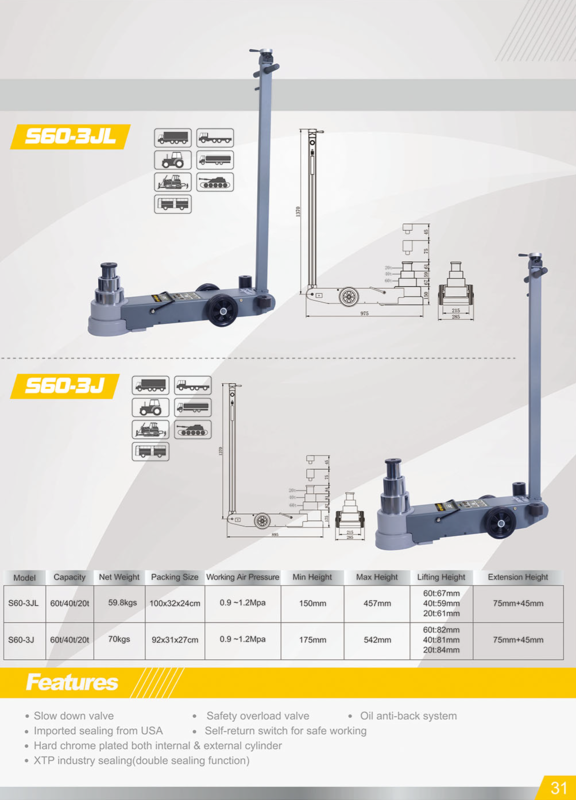

Specifications:

• Item Code: S60-3JL
• Brand: Snit
• Product Type: 3-Stage Pneumatic Hydraulic Jack
• Stage 1 Capacity: 60 Tonne
• Stage 2 Capacity: 40 Tonne
• Stage 3 Capacity: 20 Tonne
• Minimum Height: 150mm
• Maximum Height: 447mm
• Overall Lifting Range: 297mm
• Operation: Pneumatic Hydraulic
• Configuration: 3 Stage
• Body Configuration: Low Long Body

Always operate lifting equipment in accordance with the manufacturer's instructions and rated capacity. A hydraulic jack is designed for lifting only; appropriately rated support equipment should be used before working beneath a raised load.
