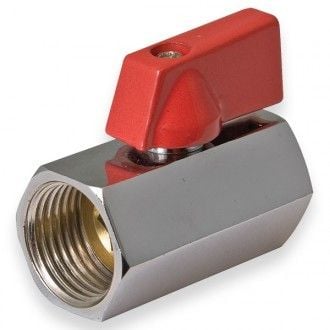

Mini Ball Valve – Female 1/4" BSP – Nickel-Plated Brass
Item Code: 66.0351
This compact Mini Ball Valve is designed to provide convenient and reliable flow control across a wide range of industrial, pneumatic, hydraulic and general-purpose applications.
Manufactured from nickel-plated brass, the valve combines durability and corrosion resistance with a compact design that is particularly useful where installation space is limited. The simple ball-valve mechanism provides quick manual control of media flow, allowing the line to be opened or closed as required.
Rated to a maximum working pressure of 220 PSI and a maximum working temperature of 90°C, the valve is suitable for compatible systems carrying air, fuel, steam, oil and water.
Features & Benefits:
- Compact mini ball valve design
- Durable nickel-plated brass construction
- Female 1/4" BSP threaded connections
- Quick and convenient manual flow control
- Maximum working pressure of 220 PSI
- Maximum working temperature of 90°C
- Suitable for air, fuel, steam, oil and water
- Ideal where installation space is limited
- Suitable for industrial, pneumatic, domestic and hydraulic applications
- Ideal for workshop and general-purpose fluid and air systems
Specifications:
- Item Code: 66.0351
- Product Type: Mini Ball Valve
- Material: Nickel-Plated Brass
- Thread Size: 1/4" BSP
- Thread Type: Female
- Maximum Working Pressure: 220 PSI
- Maximum Working Temperature: 90°C
- Compatible Media: Air, Fuel, Steam, Oil and Water
- Applications: Industrial, Pneumatic, Domestic and Hydraulic Systems
