1" Pneumatic impact wrench

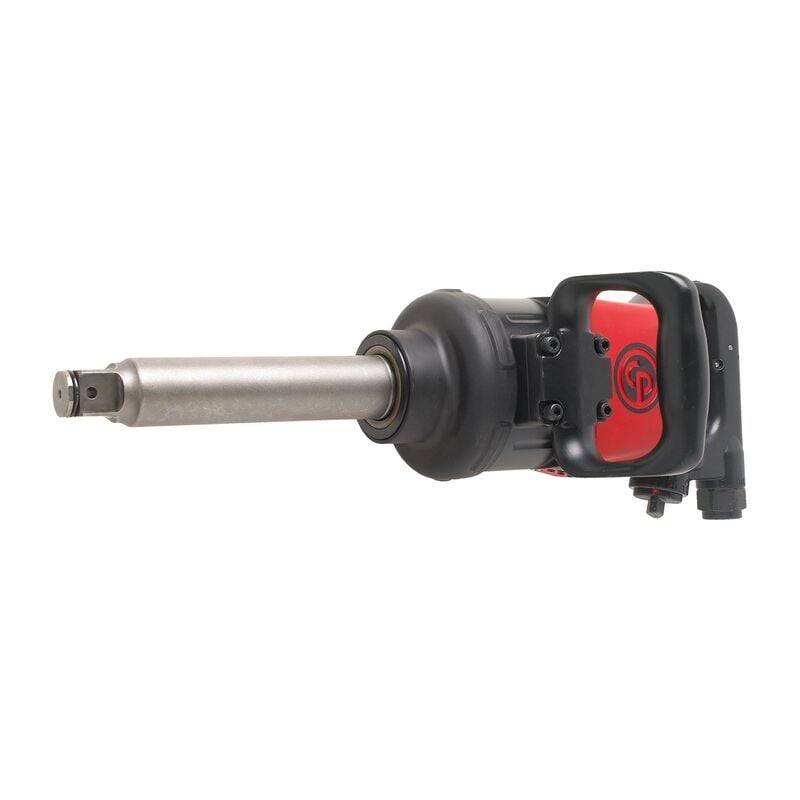

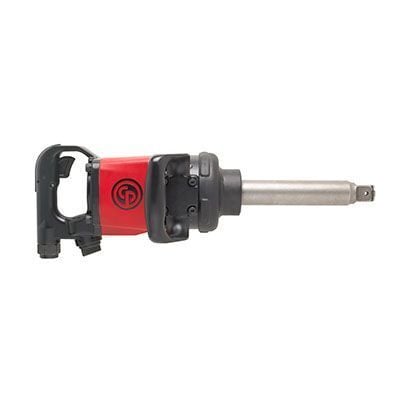

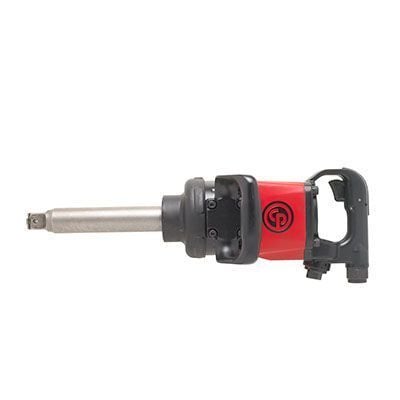

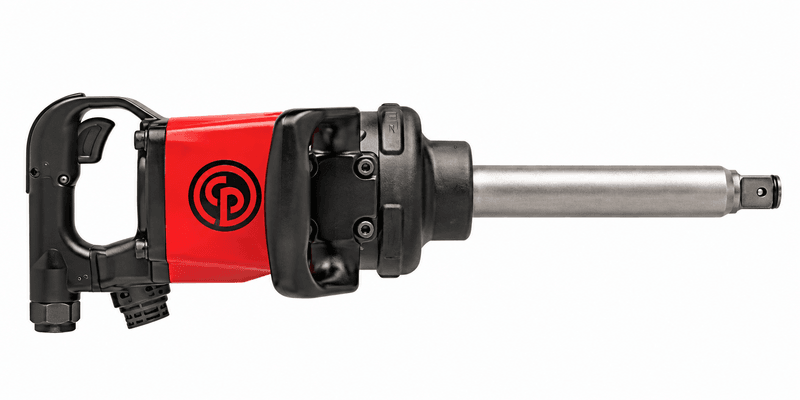

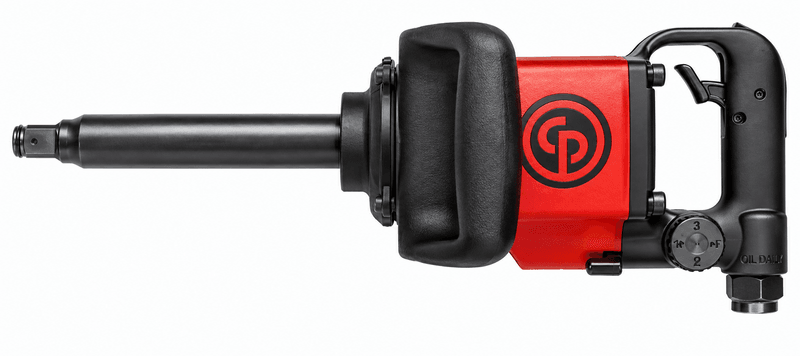

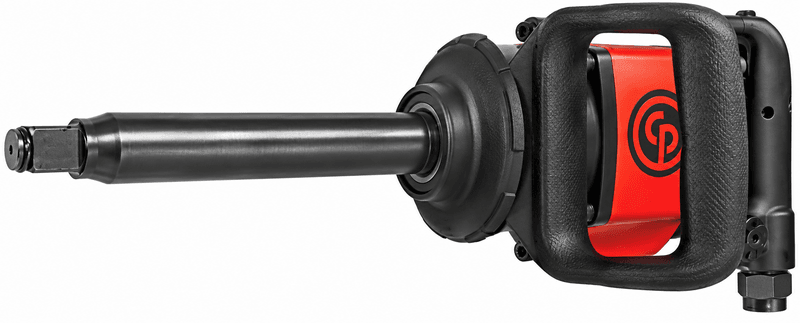

The Chicago Pneumatic CP7782-6 is a powerful 1" pneumatic impact wrench designed specifically for demanding truck, bus, heavy vehicle and commercial tyre changing applications. Delivering up to an impressive 2,600Nm (1,920 ft-lb) of maximum reverse torque, it provides the power required for removing stubborn wheel nuts and heavily tightened fasteners.
Featuring a 6" extended anvil, the CP7782-6 provides additional reach when working with recessed wheel nuts and deep wheel assemblies. Combined with its heavy-duty 1" square drive and D-handle configuration, it is particularly well suited to commercial tyre shops, fleet workshops and heavy vehicle service operations.
At the heart of the CP7782-6 is a Pinless Rocking Dog impact mechanism. Its closed, reinforced design is engineered for durability under intensive bolting and unbolting applications. The aluminium body and steel clutch housing provide a strong construction capable of withstanding demanding workshop environments.
An integrated protective cover around the clutch housing provides additional protection for both the tool and surrounding components during operation.
For improved control, the CP7782-6 features rear-mounted power regulators with three forward and three reverse settings. This allows the operator to adjust power output according to the application, with maximum forward working torque of 2,000Nm and maximum reverse torque of 2,600Nm.
The D-handle provides a secure grip and greater control over the substantial torque output, while the tool's relatively low vibration level helps improve operator comfort during regular workshop use.
Features & Benefits:
- Heavy-duty 1" square drive pneumatic impact wrench
- 6" extended anvil provides additional reach
- Maximum reverse torque of 2,600Nm / 1,920 ft-lb
- Maximum forward working torque of 2,000Nm
- Pinless Rocking Dog impact mechanism
- Closed reinforced impact mechanism designed for high durability
- Three forward and three reverse power settings
- Rear-mounted power regulators for convenient adjustment
- Integrated protective clutch housing cover
- Aluminium body for strong, durable construction
- Steel clutch housing for demanding workshop use
- D-handle configuration provides secure two-handed control
- 5,200 RPM free speed
- Delivers up to 500 blows per minute
- Low-vibration design for improved operator comfort
- Dual output retainer
- Designed for intensive tyre changing and heavy vehicle servicing
Suitable Applications:
- Truck tyre changing
- Heavy vehicle wheel servicing
- Bus and commercial vehicle maintenance
- Fleet workshops
- Wheel nut removal and installation
- Heavy-duty bolting and unbolting
- Commercial tyre shops
- Heavy machinery maintenance
- Industrial and mechanical workshop applications
Specifications:
- Item Code: CP 7782-6
- Brand: Chicago Pneumatic
- Product Type: Heavy-Duty Pneumatic Impact Wrench
- Output Drive: 1" Square Drive
- Anvil: 6" Extended
- Maximum Reverse Torque: 2,600Nm / 1,920 ft-lb
- Maximum Forward Working Torque: 2,000Nm
- Minimum Forward Working Torque: 500Nm
- Free Speed: 5,200 RPM
- Blows Per Minute: 500
- Impact Mechanism: Pinless Rocking Dog
- Overall Length: 520mm
- Weight: 11.6kg
- Body Material: Aluminium
- Clutch Housing: Steel
- Handle Type: D-Handle
- Power Settings: 3 Forward / 3 Reverse
- Starting System: Trigger
- Output Retainer: Dual
- Clutch Lubrication: Grease
- Air Inlet Thread: 1/2"
- Maximum Dynamic Air Working Pressure: 6.3 Bar
- Minimum Hose Diameter: 13mm / 1/2"
- Vibration: 7.8 m/s²
- Vibration Uncertainty (K): 1.8 m/s²
- Sound Pressure: 100 dB(A)
- Sound Power: 111 dB(A)
