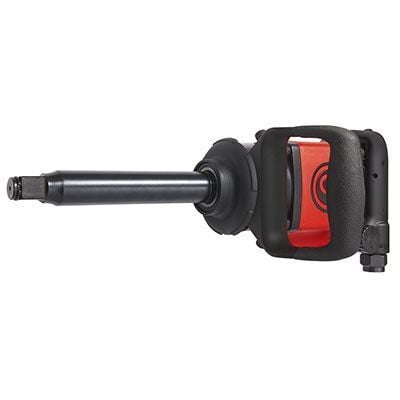

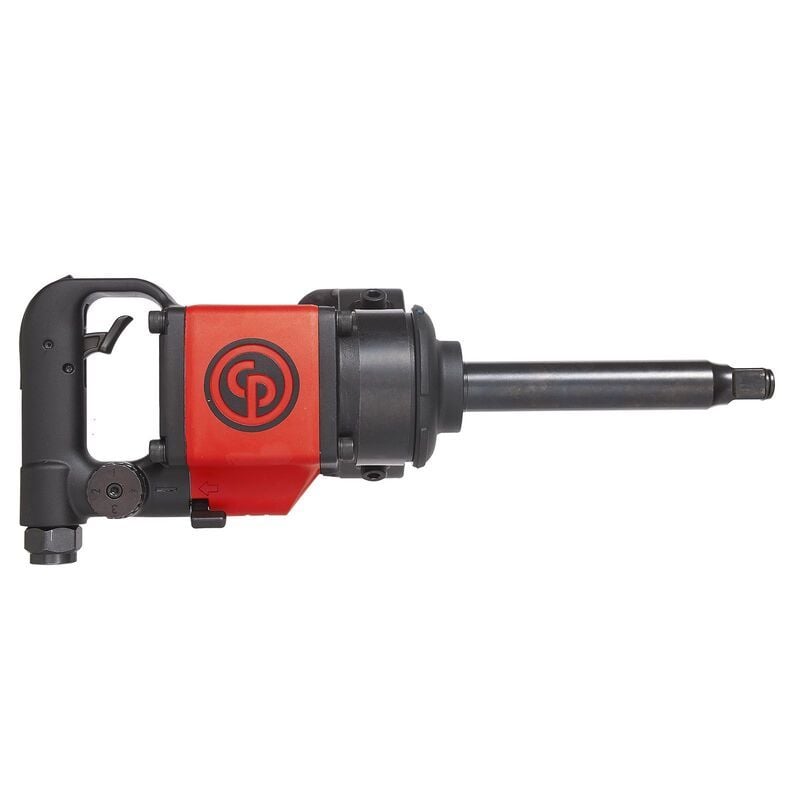

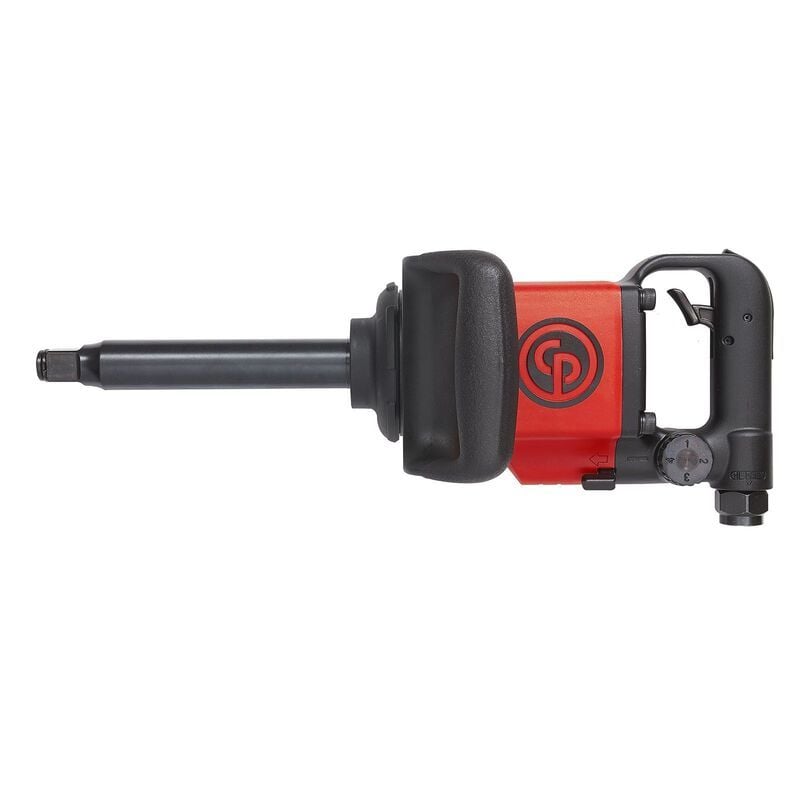

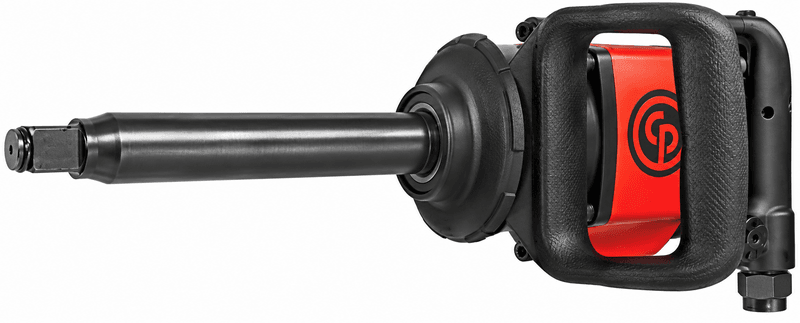

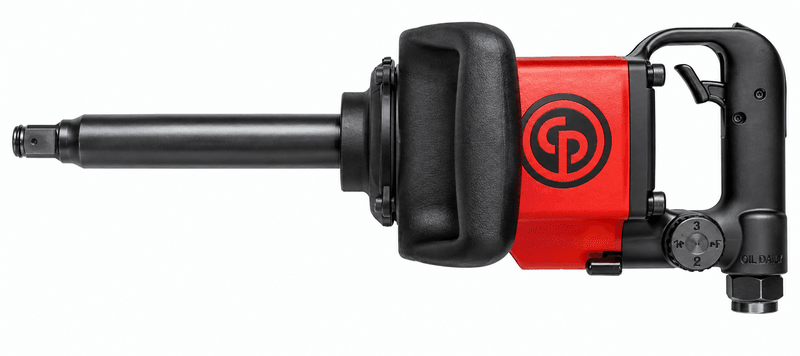

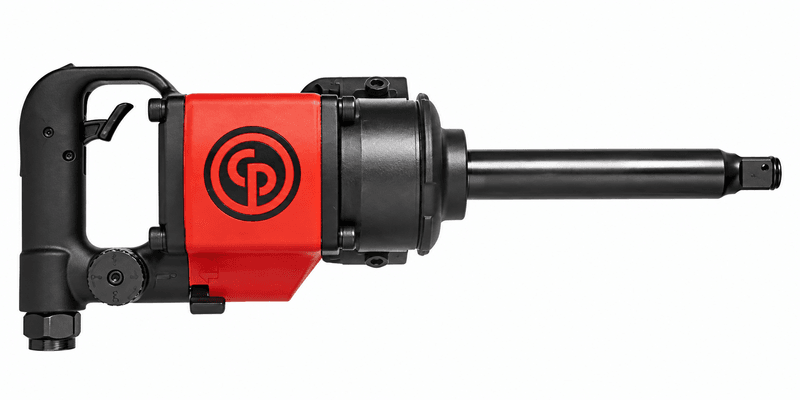

Chicago Pneumatic 3/4" Pneumatic Impact Wrench – D-Handle – 6" Extended Anvil

Featuring a D-handle configuration and 6" extended anvil, the CP7763D-6 provides excellent control and additional reach when working with recessed wheel nuts and other difficult-to-access fasteners. This configuration makes it particularly well suited to truck, bus, fleet and heavy vehicle tyre servicing.

The heavy-duty Twin Hammer impact mechanism delivers strong and consistent impact performance for repeated bolting and unbolting operations. With maximum reverse torque of up to 1,760Nm and maximum forward working torque of 1,450Nm, the CP7763D-6 provides substantial power for demanding workshop applications.

A composite body helps keep overall weight to 7.3kg while providing the durability required for regular workshop use. The aluminium clutch housing protects the impact mechanism, while the D-handle provides a secure two-handed grip for improved handling and control.

An intuitive forward/reverse control allows quick directional changes, while the integrated power regulator gives the operator greater control over output. With a free speed of 6,600 RPM, the CP7763D-6 combines power, durability and practical workshop handling in a heavy-duty pneumatic package.

Features & Benefits:

• Heavy-duty 3/4" square drive pneumatic impact wrench
• D-handle design provides secure handling and control
• 6" extended anvil provides additional reach
• Maximum reverse torque of 1,760Nm
• Maximum forward working torque of 1,450Nm
• Twin Hammer impact mechanism for powerful and durable operation
• Composite body construction helps reduce overall tool weight
• Aluminium clutch housing for additional durability
• Intuitive forward/reverse control for convenient operation
• Power regulator provides greater control over fastening
• High-speed 6,600 RPM air motor
• Friction-ring socket retention
• Designed for repeated bolting and unbolting applications
• Ideal for tyre changing and heavy vehicle servicing
• Suitable for demanding commercial and mechanical workshop environments

Suitable Applications:

• Truck and heavy vehicle tyre changing
• Commercial vehicle wheel servicing
• Bus and fleet maintenance
• Wheel nut removal and installation
• General maintenance
• Heavy-duty bolting and unbolting
• Automotive and mechanical workshops
• Industrial maintenance applications

Specifications:

• Item Code: CP7763D-6
• Brand: Chicago Pneumatic
• Product Type: Pneumatic Impact Wrench
• Output Drive: 3/4" Square Drive
• Anvil: 6" Extended
• Handle Type: D-Handle
• Maximum Reverse Torque: 1,760Nm
• Maximum Forward Working Torque: 1,450Nm
• Minimum Forward Working Torque: 340Nm
• Free Speed: 6,600 RPM
• Impact Mechanism: Twin Hammer
• Overall Length: 445mm
• Weight: 7.3kg
• Body: Composite
• Clutch Housing: Aluminium
• Output Retainer: Friction Ring
• Starting System: Trigger
• Torque Limited: No
• Clutch Lubrication: Grease
• Side to Centre: 45mm
• Air Inlet Thread: 1/2"
• Maximum Dynamic Air Working Pressure: 6.3 Bar
• Minimum Hose Diameter: 13mm
• Vibration: 12 m/s²
• Vibration Uncertainty (K): 3.3 m/s²
• Sound Pressure: 98 dB(A)
• Sound Power: 109 dB(A)
