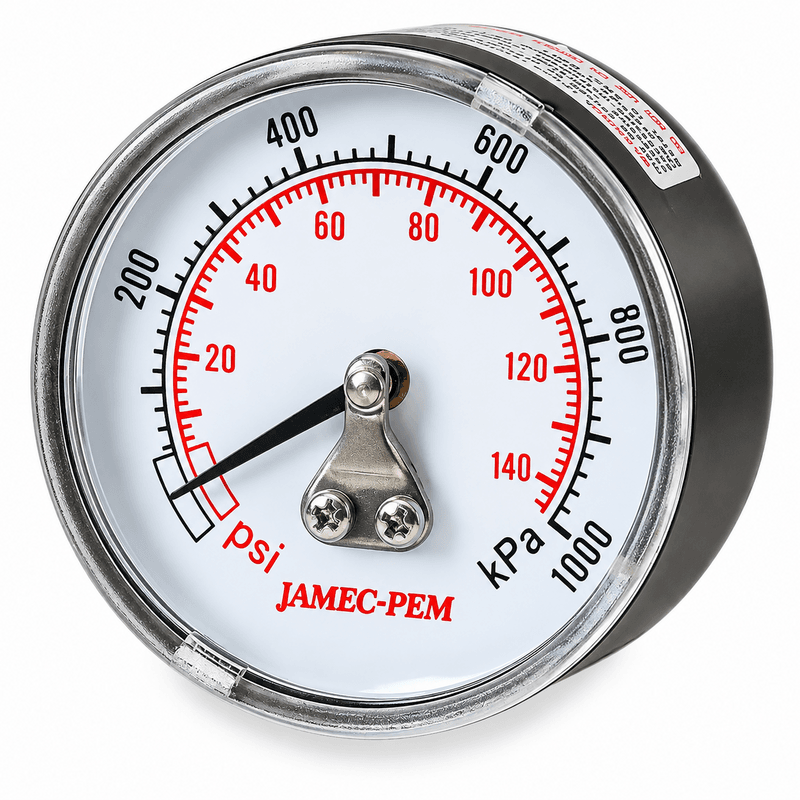

Jamec Pem Rear Entry Dial Pressure Gauge – 0–150 PSI / 0–1000 kPa – 50mm
Item Code: 06.2206
The Jamec Pem Rear Entry Pressure Gauge is a professional-quality dial gauge designed for compressed air and pneumatic applications. Featuring a convenient rear-entry connection, it is particularly well suited to installations where the gauge is mounted directly into an air regulator, compressor or other airline equipment.
The clear 50mm dial features dual PSI and kPa scales, allowing pressure to be quickly and easily monitored in either measurement. With a working scale of 0–1000 kPa and 0–150 PSI, it provides a versatile pressure range for general workshop and trade applications.
Constructed with a durable black steel case and brass threaded connection, this diaphragm-type gauge is designed to withstand regular use in professional workshop environments.
Features:
- Quality Jamec Pem pressure gauge
- Diaphragm-type gauge
- Durable black steel case
- Brass threaded connection
- Rear-entry configuration
- Designed for compressed airline applications
- Clear 50mm dial
- Dual-scale display in PSI and kPa
- Pressure range of 0–150 PSI
- Pressure range of 0–1000 kPa
- Accuracy of ±2 PSI between 25–75 PSI
- Ideal for trade and professional workshop use
- Suitable for compressors, regulators and compatible pneumatic equipment
Specifications:
- Brand: Jamec Pem
- Product Type: Dial Pressure Gauge
- Style: Rear Entry
- Connection: 1/4" BSP Male
- Dial Diameter: 50mm
- Scale: 0–150 PSI / 0–1000 kPa
- Accuracy: ±2 PSI @ 25–75 PSI
- Case: Black Steel
- Thread Material: Brass
- Recommended Application: Trade
