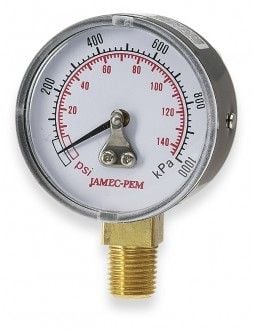

Jamec Pem Dial Pressure Gauge – Bottom Entry – 0–140 PSI / 0–1000 kPa

The Jamec Pem Dial Pressure Gauge is a compact, professional-quality pressure gauge designed for monitoring compressed air systems and pneumatic equipment.

Ideally suited to air compressors, rotary pumps, regulators and general airline applications, the gauge features a clear dual-scale dial displaying pressure in both PSI and kPa for quick and convenient readings.

The bottom-entry design incorporates a durable brass threaded connection for straightforward installation into compatible pneumatic equipment. Its compact 40mm diameter makes it particularly useful where installation space is limited while still providing a clear, easy-to-read pressure display.

Constructed with a durable 304 stainless steel case and designed for regular workshop and industrial use, this Jamec Pem gauge is an excellent replacement or installation gauge for a wide variety of compressed air applications.

Features:

• Quality Jamec Pem pressure gauge
• Designed for compressed airline applications
• Ideal for compressors, rotary pumps and regulators
• Bottom-entry configuration
• Brass threaded connection
• Dual-scale pressure display
• Clearly displays both PSI and kPa
• Compact 40mm diameter
• Durable construction for professional workshop use
• Suitable as a replacement gauge for compatible pneumatic equipment

Specifications:

• Brand: Jamec Pem
• Gauge Type: Dial Pressure Gauge
• Entry: Bottom
• Connection: 1/8" BSPT
• Gauge Diameter: 40mm
• Pressure Range: 0–140 PSI
• Pressure Range: 0–1000 kPa
• Maximum Pressure: 145 PSI / 1000 kPa
• Case Material: 304 Stainless Steel
• Connection Material: Brass
• Scale: PSI and kPa
