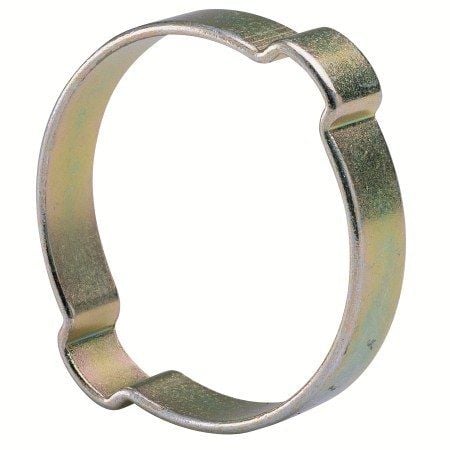

Tridon Double Ear Hose Clamps – TEC Series
The Tridon TEC Series Double Ear Hose Clamps provide a simple, economical and reliable solution for securing hose connections across a wide range of compressed air, gas and liquid line applications.
Featuring a double ear design, these clamps provide an effective method of applying even clamping pressure around the hose. Installation is quick and straightforward: simply position the clamp over the hose and fitting, then compress the ears using suitable pincing pliers to tighten and secure the connection.
Manufactured from zinc-plated carbon steel, the TEC Series combines strength and durability with corrosion protection for dependable service in workshop, automotive, pneumatic and general industrial applications.
With sizes ranging from 4–6mm through to 43–46mm, the TEC Series provides a comprehensive selection for different hose diameters and applications. Tridon SPC-1 and FCP-1 pincing pliers can be used to assist with correct installation.
Features & Benefits:
- Double ear hose clamp design
- Simple and economical hose-securing solution
- Provides secure and even clamping around the hose
- Quick and easy installation
- Manufactured from carbon steel
- Zinc-plated finish for additional corrosion protection
- Suitable for compressed air, gas and liquid lines
- Wide range of sizes for different hose diameters
- Ideal for automotive, pneumatic, workshop and industrial applications
- Compatible with Tridon SPC-1 and FCP-1 pincing pliers for installation
Available Sizes:
| Product Code | Clamp Size |
|---|---|
| TEC46-20 | 4–6mm |
| TEC57-20 | 5–7mm |
| TEC79-20 | 7–9mm |
| TEC911-20 | 9–11mm |
| TEC113-20 | 11–13mm |
| TEC1315-20 | 13–15mm |
| TEC1517-20 | 15–17mm |
| TEC1518-20 | 15–18mm |
| TEC1720-20 | 17–20mm |
| TEC2023-20 | 20–23mm |
| TEC2225-20 | 22–25mm |
| TEC2325-20 | 23–25mm |
| TEC2528-20 | 25–28mm |
| TEC2831-20 | 28–31mm |
| TEC3134-20 | 31–34mm |
| TEC3437-20 | 34–37mm |
| TEC3740-20 | 37–40mm |
| TEC4043-20 | 40–43mm |
| TEC4346-20 | 43–46mm |
Specifications:
- Item Code: TEC
- Brand: Tridon
- Series: TEC
- Product Type: Double Ear Hose Clamp
- Material: Carbon Steel
- Finish: Zinc Plated
- Clamp Design: Double Ear
- Size Range: 4–46mm
- Suitable Media: Compressed Air, Gas & Liquid Lines
- Recommended Installation Tools: SPC-1 or FCP-1 Pincing Pliers
