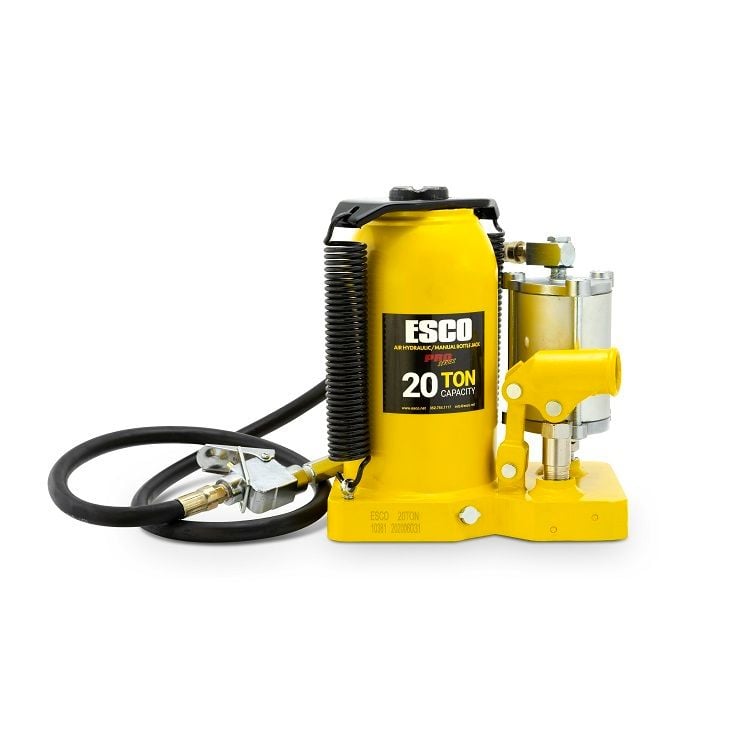

ESCO Pro Series 20 Ton Air Hydraulic Bottle Jack – Heavy-Duty Commercial

With a massive 20 ton (40,000 lb) lifting capacity, this jack combines powerful air-assisted hydraulic operation with the ability to operate manually using the supplied two-piece lifting and lowering handle. This versatility makes it an excellent choice for workshops as well as mobile service applications where compressed air may not always be available.

Its compact bottle jack configuration provides substantial lifting capacity without requiring excessive workshop space. The fully welded cylinder and frame, extra-thick base and heavy-duty components are engineered to provide excellent strength, stability and service life in demanding working environments.

The chrome-plated piston provides additional protection against rust and corrosion, while an integrated safety valve helps protect against overloading. A double-spring design provides controlled descent as hydraulic pressure is released.

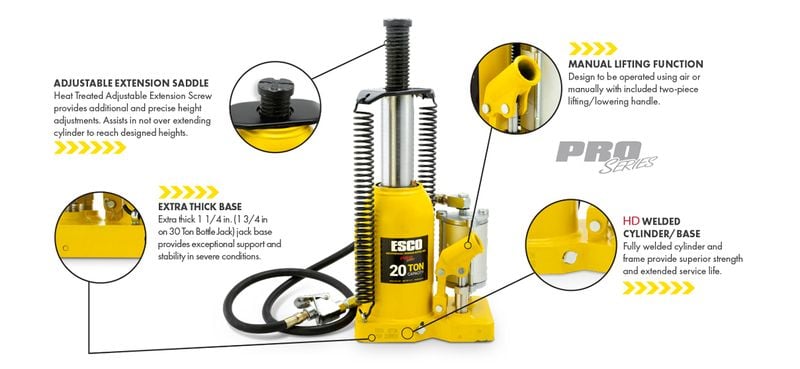

For greater flexibility when positioning the jack beneath a lifting point, the heat-treated adjustable extension screw provides an additional 4" of adjustment. This allows the saddle height to be set more precisely before lifting and helps minimise unnecessary cylinder extension.

For pneumatic operation, the jack includes a 4 ft swivel-end air hose with a convenient handheld push-button trigger. The trigger incorporates a 1/4" NPT air inlet, in-line air filter and airflow latch for convenient continuous airflow while raising the jack under load.

Features & Benefits:

• Professional ESCO Pro Series air hydraulic bottle jack
• Heavy-duty 20 ton (40,000 lb) lifting capacity
• Specifically designed for demanding tyre service and heavy vehicle applications
• Can be operated pneumatically or manually
• Fully welded cylinder and frame for superior strength
• Extra-thick jack base provides excellent support and stability
• Compact design suitable for workshop and mobile service applications
• Chrome-plated piston provides additional rust and corrosion resistance
• Integrated safety valve helps prevent overloading
• Double-spring design provides controlled descent when releasing pressure
• Heat-treated adjustable extension screw
• 4" screw adjustment provides precise positioning beneath the lifting point
• Heavy-duty chrome-plated air motor
• Air motor incorporates wear-resistant components for dependable service
• Includes 4 ft swivel-end air hose
• Handheld push-button air trigger
• Airflow latch allows convenient continuous airflow while raising the jack
• In-line air filter helps protect and extend air motor service life
• Includes two-piece handle for manual lifting and lowering
• Suitable for commercial trucks, buses, tractors and farm equipment
• 1-year warranty

Suitable Applications:

• Commercial truck tyre servicing
• Heavy vehicle workshops
• Bus servicing and maintenance
• Tractor and agricultural equipment
• Fleet maintenance
• Mobile tyre service vehicles
• Heavy-duty mechanical workshops
• Farm and industrial equipment servicing

Specifications:

• Item Code: 10381
• Brand: ESCO
• Series: Pro Series
• Product Type: Air Hydraulic Bottle Jack
• Capacity: 20 Ton (40,000 lb)
• Minimum Height: 10" (254mm)
• Maximum Height: 20" (508mm)
• Ram Travel: 6" (152.4mm)
• Screw Adjustment: 4" (101.6mm)
• Saddle Width: 1.75" (44.5mm)
• Base Thickness: 1.25" (31.8mm)
• Base Size: 8.875" x 5.75" (225.4 x 146.1mm)
• Net Weight: 41 lb (18.6kg)
• Gross Weight: 42 lb (19.1kg)
• Air Inlet: 1/4" NPT
• Recommended Air Pressure: 110–125 PSI
• Air Hose Length: 4 ft (1.22m)
• Warranty: 1 Year
• UPC: 816904024871

Always operate lifting equipment in accordance with the manufacturer's instructions and rated capacity. A hydraulic jack is designed for lifting only; appropriately rated support equipment should be used before working beneath a raised load.
