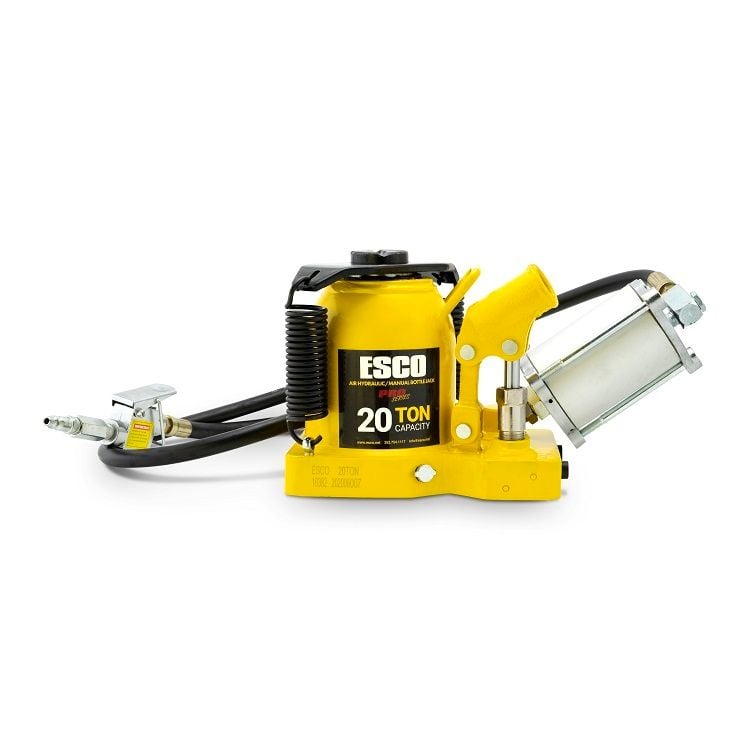

ESCO Pro Series 20 Ton “Shorty” Air Hydraulic Bottle Jack – Super Low Profile

Developed with the heavy-duty tyre service industry in mind, the Shorty combines an impressive 20 ton (40,000 lb) lifting capacity with a super-low minimum height of just 7.125" (181mm). This makes it particularly well suited to commercial trucks, buses, tractors, agricultural equipment and other heavy vehicles or machinery where a conventional bottle jack may be too tall to position beneath the lifting point.

The fully welded cylinder and frame provide excellent structural strength and extended service life, while the extra-thick 1.25" base provides additional support and stability in demanding workshop, fleet and roadside service environments.

For maximum versatility, the jack can be operated pneumatically using compressed air or manually using the supplied two-piece lifting and lowering handle. The pneumatic system operates at 110–125 PSI and includes a 4 ft swivel-end air hose with a convenient handheld push-button trigger.

The air trigger incorporates a 1/4" NPT inlet, an in-line air filter to help protect and extend the service life of the air motor, and an airflow latch that allows constant airflow while raising the jack under load.

A chrome-plated piston provides additional resistance against rust and corrosion, while the heavy-duty chrome-plated air motor incorporates wear-resistant components for dependable professional performance.

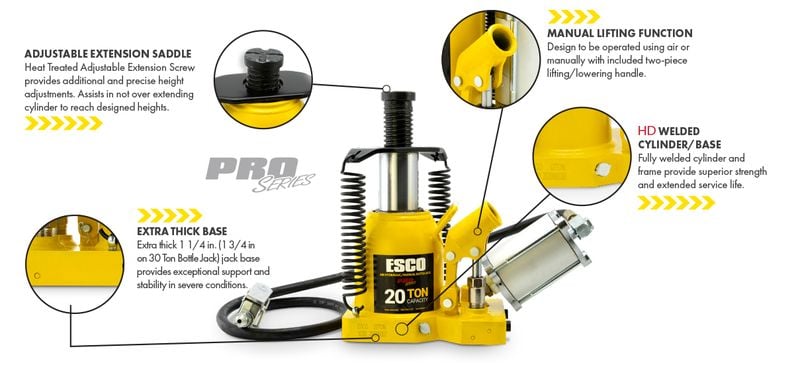

Features & Benefits:

• Professional ESCO Pro Series air hydraulic bottle jack
• Heavy-duty 20 ton (40,000 lb) lifting capacity
• Super low-profile “Shorty” configuration
• Minimum height of only 7.125" (181mm)
• Specifically designed for low-clearance heavy-duty applications
• Fully welded cylinder and frame for superior strength
• Extra-thick 1.25" base for excellent support and stability
• Compact design for easier positioning beneath vehicles and equipment
• Chrome-plated piston for additional rust and corrosion resistance
• Integrated safety valve helps protect against overloading
• Double-spring design provides controlled descent when releasing pressure
• Heat-treated adjustable extension screw
• 2.5" screw adjustment for more precise positioning
• 3.25" hydraulic ram travel
• Maximum lifting height of 12.625" (321mm)
• Can be operated pneumatically or manually
• Includes two-piece manual lifting and lowering handle
• Heavy-duty chrome-plated air motor
• Wear-resistant air motor components for increased durability
• Includes 4 ft swivel-end air hose
• Handheld push-button air trigger
• Airflow latch provides convenient constant airflow while raising
• In-line air filter helps protect the air motor
• Ideal for professional workshop, fleet and mobile service applications
• 1-year warranty

Suitable Applications:

• Low-clearance heavy vehicle lifting
• Commercial trucks
• Bus servicing
• Heavy-duty tyre servicing
• Tractor and agricultural equipment
• Fleet maintenance
• Mobile tyre service vehicles
• Heavy mechanical workshops
• Industrial and equipment maintenance

Specifications:

• Brand: ESCO
• Series: Pro Series
• Product Type: Shorty Air Hydraulic Bottle Jack
• Capacity: 20 Ton (40,000 lb)
• Minimum Height: 7.125" (181mm)
• Maximum Height: 12.625" (321mm)
• Ram Travel: 3.25" (82.6mm)
• Screw Adjustment: 2.5" (63.5mm)
• Saddle Width: 1.75" (44.5mm)
• Base Thickness: 1.25" (31.8mm)
• Base Size: 8.25" x 5.75" (209.6 x 146.1mm)
• Inner Package: 15.125" x 7.875" x 8.125"
• Outer Package: 15" x 8" x 8"
• Net Weight: 34 lb (15.4kg)
• Gross Weight: 35 lb (15.9kg)
• Air Inlet Fitting: 1/4" NPT
• Operating Air Pressure: 110–125 PSI
• Warranty: 1 Year
• UPC: 816904024864

Always operate lifting equipment in accordance with the manufacturer's instructions and rated capacity. A hydraulic jack is designed for lifting only; appropriately rated support equipment should be used before working beneath a raised load.
