ESCO Pro Series 30 Ton Air Hydraulic Bottle Jack – Heavy-Duty Commercial

With an impressive 30 ton (60,000 lb) lifting capacity, this jack is ideally suited to demanding applications involving commercial trucks, buses, tractors, farm equipment and other heavy vehicles and machinery.

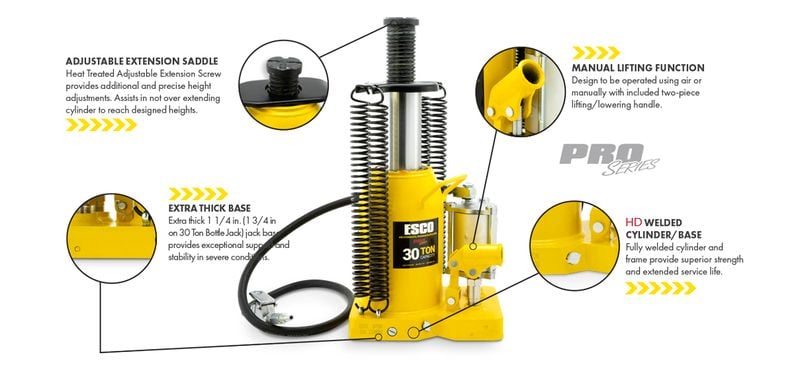

The fully welded cylinder and frame provide superior structural strength and extended service life, while the extra-thick 1.5" base provides excellent support and stability in demanding working conditions. Despite its substantial lifting capacity, the compact bottle jack design allows it to be conveniently positioned and used across a wide variety of heavy-duty applications.

For maximum versatility, the jack can be operated pneumatically using compressed air or manually using the supplied two-piece lifting and lowering handle. This dual-operation design is particularly useful for workshop and mobile service applications where an air supply may not always be available.

The chrome-plated piston provides additional protection against rust and corrosion, while an integrated safety valve helps prevent overloading. A double-spring system provides controlled and safe descent as hydraulic pressure is released.

A heat-treated adjustable extension screw provides an additional 3.75" (95.3mm) of adjustment, allowing the saddle to be positioned closer to the lifting point before hydraulic operation and helping avoid unnecessary overextension of the cylinder.

Features & Benefits:

• Professional ESCO Pro Series air hydraulic bottle jack
• Massive 30 ton (60,000 lb) lifting capacity
• Designed for demanding heavy-duty tyre service applications
• Fully welded cylinder and frame for superior strength
• Extra-thick 1.5" base provides excellent support and stability
• Compact design for greater versatility in heavy-duty applications
• Chrome-plated piston for increased rust and corrosion resistance
• Integrated safety valve helps prevent overloading
• Double-spring design provides controlled and safe descent
• Heat-treated adjustable extension screw
• 3.75" extension screw adjustment for precise positioning
• 6" hydraulic ram travel
• Maximum lifting height of 20" (508mm)
• Dual-operation design – pneumatic or manual
• Includes two-piece lifting and lowering handle
• Heavy-duty chrome-plated air motor
• Wear-resistant air motor components for long-term dependability
• Includes 4 ft swivel-end air hose
• Convenient handheld push-button air trigger
• Airflow latch allows continuous airflow while raising the jack
• In-line air filter helps protect and extend air motor service life
• 1/4" NPT air inlet fitting
• Designed to operate at 110–125 PSI
• Ideal for professional workshops, fleets and mobile tyre service applications
• 1-year warranty

Suitable Applications:

• Commercial trucks
• Heavy-duty tyre servicing
• Bus servicing and maintenance
• Tractor and agricultural equipment
• Heavy vehicle workshops
• Fleet maintenance
• Mobile tyre service vehicles
• Industrial machinery and equipment
• Heavy mechanical servicing

Specifications:

• Brand: ESCO
• Series: Pro Series
• Product Type: Air Hydraulic Bottle Jack
• Capacity: 30 Ton (60,000 lb)
• Minimum Height: 10.875" (276.2mm)
• Maximum Height: 20" (508mm)
• Ram Travel: 6" (152.4mm)
• Screw Adjustment: 3.75" (95.3mm)
• Saddle Width: 1.75" (44.5mm)
• Base Thickness: 1.5" (38.1mm)
• Base Size: 9.625" x 7.125" (244.5 x 181mm)
• Outer Package: 11" x 10" x 12"
• Net Weight: 63 lb (28.6kg)
• Gross Weight: 64 lb (29kg)
• Air Inlet Fitting: 1/4" NPT
• Operating Air Pressure: 110–125 PSI
• Warranty: 1 Year
• UPC: 816904024888

Always operate lifting equipment in accordance with the manufacturer's instructions and rated capacity. A hydraulic jack is designed for lifting only; appropriately rated support equipment should be used before working beneath a raised load.
