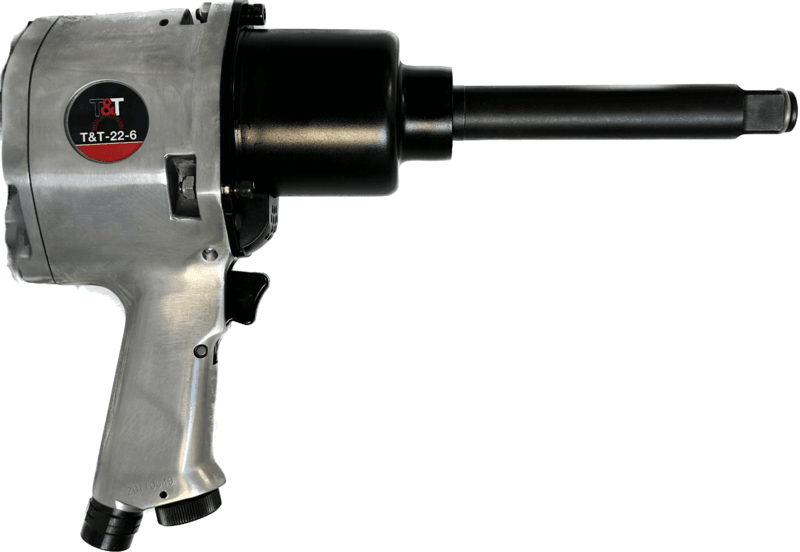

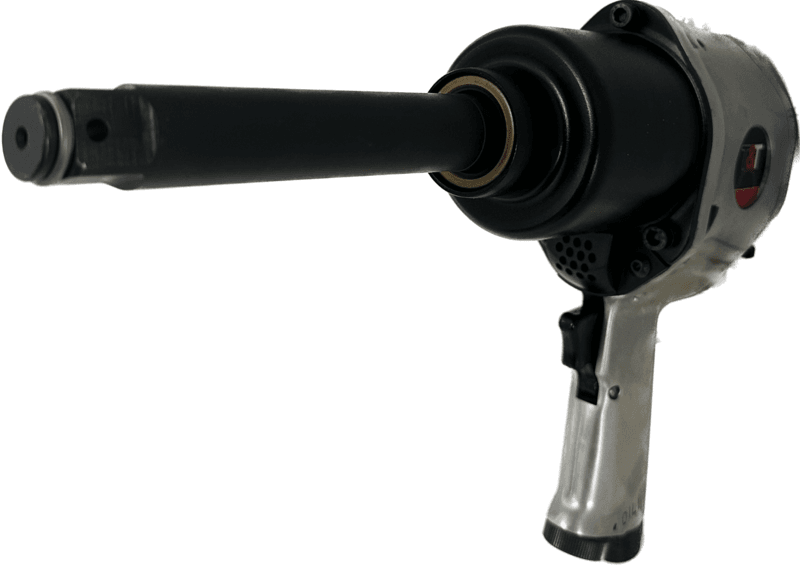

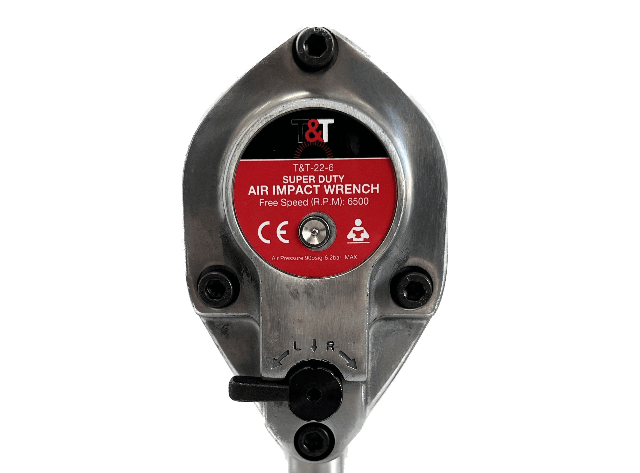

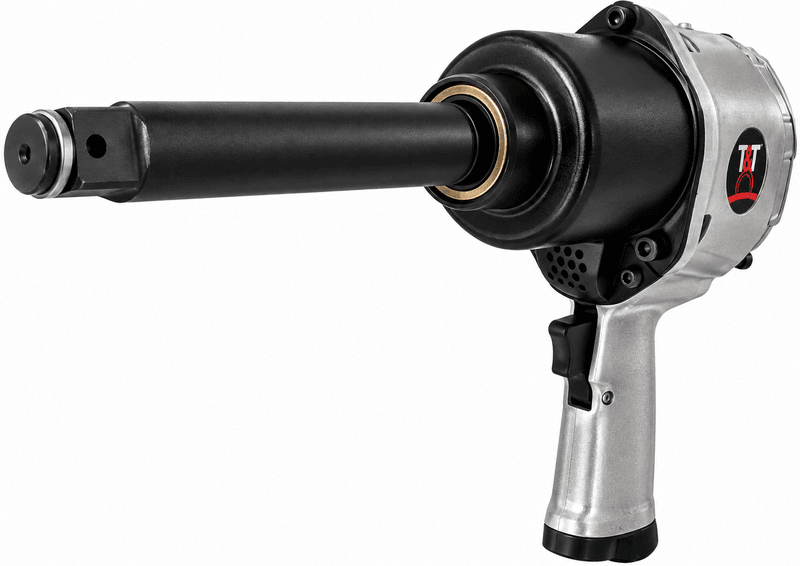

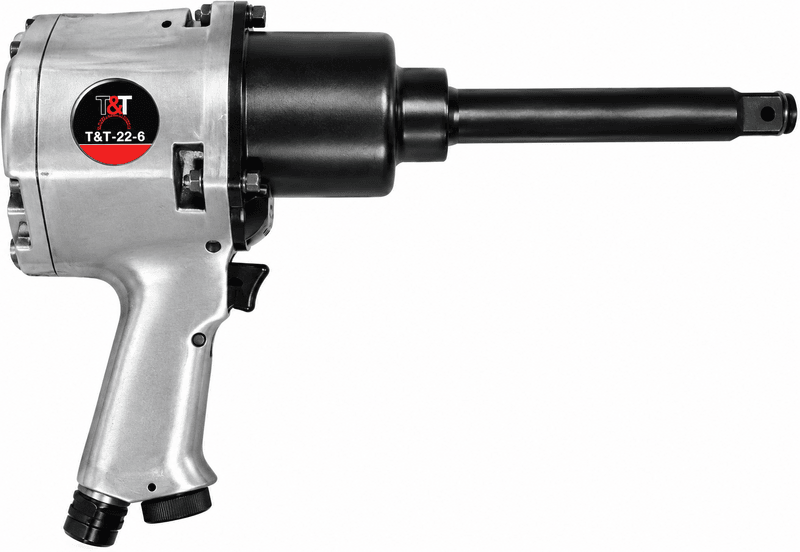

3/4" SQ. Drive Super Duty Air Impact Wrench

Item Code: T&T-22-6

4 position power settings
Max torque of 800 ft-lb in reverse
6" extended anvil
Ideal for spring work to pinion nut, truck pad removal, and major engine teardowns

Dimensions

Length - Metric (mm) 393

Weight

Metric (kg) 6.15

Power

Power Source Compressed Air

Recommended Air Inlet Pressure (psi) 90

Recommended Air Inlet Pressure (bar) 6.2

Avg. Air Consumption (cfm) 7

Avg. Air Consumption (L/min)198

Air Inlet (inch) 1/4

Air Hose I.D. (inch) 3/8

Exhaust Direction Front exhaust

Motor

Motor Type Air rotor

Speed of Motor (rpm)6,500

Transmission Mode

Torque Transmission Mechanism New Twin Hammer clutch

Capability

Working Torque at 5th sec (Nm) 1,085

Working Torque at 5th sec (Ft-lb) 800

Holder

Anvil Length (inch) 6” extended.

Anvil Shape Square Drive (inch)

Anvil Size - Square Drive (inch) 3/4
