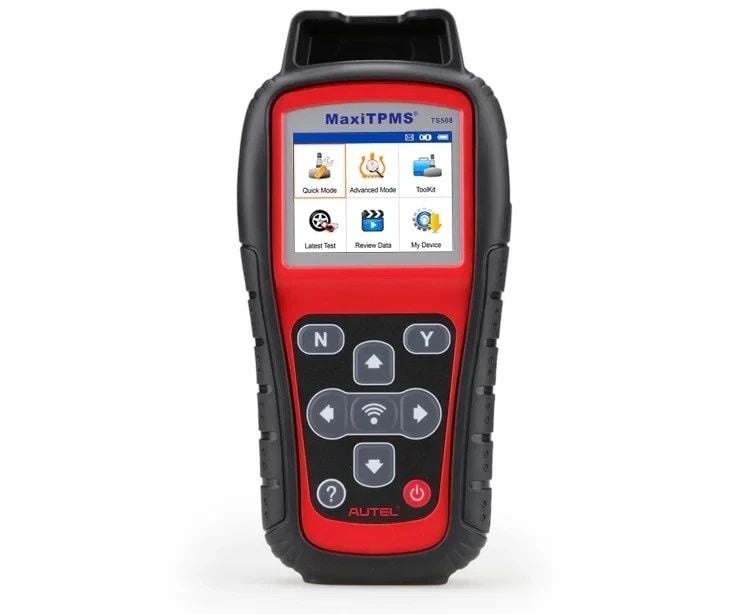

Autel MaxiTPMS TS508WF TPMS Diagnostic, Programming & Relearn Tool

Featuring both Quick Mode and Advanced Mode, the TS508WF allows technicians to select the appropriate level of TPMS servicing for the job. Quick Mode provides fast access to commonly used sensor activation and checking functions, while Advanced Mode provides more comprehensive TPMS diagnostics, programming and relearn capabilities.

The tool can activate and read known TPMS sensors, providing important sensor information including sensor ID, tyre pressure, temperature and battery condition. This allows technicians to quickly assess the condition of individual sensors and identify potential TPMS faults.

Autel MX-Sensors can be programmed directly using the tool, providing a convenient replacement solution for damaged, faulty or failed original sensors. Multiple programming methods are supported, including sensor cloning, helping streamline TPMS replacement and servicing.

For vehicle relearning, the TS508WF provides on-tool instructions for supported procedures, including OBDII relearn applications. It can also perform placard value resets on supported vehicles and includes an OBDII cable for compatible vehicle communication.

Built-in Wi-Fi provides convenient access to software and firmware updates without needing to connect the tool to a computer for routine updating.

Features & Benefits:

• Professional TPMS diagnostic, programming and relearn tool
• Activates and reads known TPMS sensors
• Displays sensor ID, tyre pressure, temperature and battery condition
• Helps identify faulty, weak or non-responsive TPMS sensors
• Supports both 315 MHz and 433 MHz TPMS frequencies
• Programs compatible Autel MX-Sensors
• Supports multiple MX-Sensor programming methods
• Sensor cloning capability for replacement applications
• Batch programming capability for improved workshop efficiency
• Quick Mode for fast TPMS sensor checking and activation
• Advanced Mode for comprehensive diagnostics, programming and relearn functions
• Provides guided on-screen TPMS relearn procedures
• Supports OBDII relearn procedures on compatible vehicles
• Performs placard value resets on supported vehicles
• TPMS status screen provides an easy overview of system condition
• Key fob signal testing capability
• Built-in Wi-Fi connectivity
• Designed for broad TPMS-equipped vehicle coverage
• Includes OBDII cable
• Portable handheld design suitable for professional workshop use
• 1-year tool warranty
• Free lifetime software updates

Quick Mode:

Quick Mode is designed for commonly performed TPMS servicing tasks, allowing technicians to rapidly activate sensors, retrieve sensor information and perform initial system checks without navigating through more advanced diagnostic functions.

Advanced Mode:

Advanced Mode provides access to the tool's more comprehensive TPMS functions, including sensor diagnostics, MX-Sensor programming and vehicle-specific relearn procedures. This makes it suitable for more involved TPMS servicing and fault diagnosis.

TPMS Sensor Programming & Cloning:

The TS508WF can program compatible Autel MX-Sensors for use as replacement TPMS sensors. Programming and cloning functionality can help technicians replace failed or damaged sensors while providing an efficient solution for servicing multiple vehicles.

Specifications:

• Brand: Autel
• Model: MaxiTPMS TS508WF
• Product Type: Professional TPMS Service Tool
• Functions: TPMS Diagnostics, Sensor Activation, MX-Sensor Programming, Sensor Cloning & Relearn Procedures
• Supported Frequencies: 315 MHz & 433 MHz
• Operating Modes: Quick Mode & Advanced Mode
• Sensor Programming: Autel MX-Sensor
• Relearn Support: Guided On-Tool Procedures Including Supported OBDII Relearns
• Placard Value Reset: Supported Vehicles
• Key Fob Signal Test: Yes
• Connectivity: Built-In Wi-Fi
• Updates: Free Lifetime Software Updates
• OBDII Cable: Included
• Tool Warranty: 1 Year
