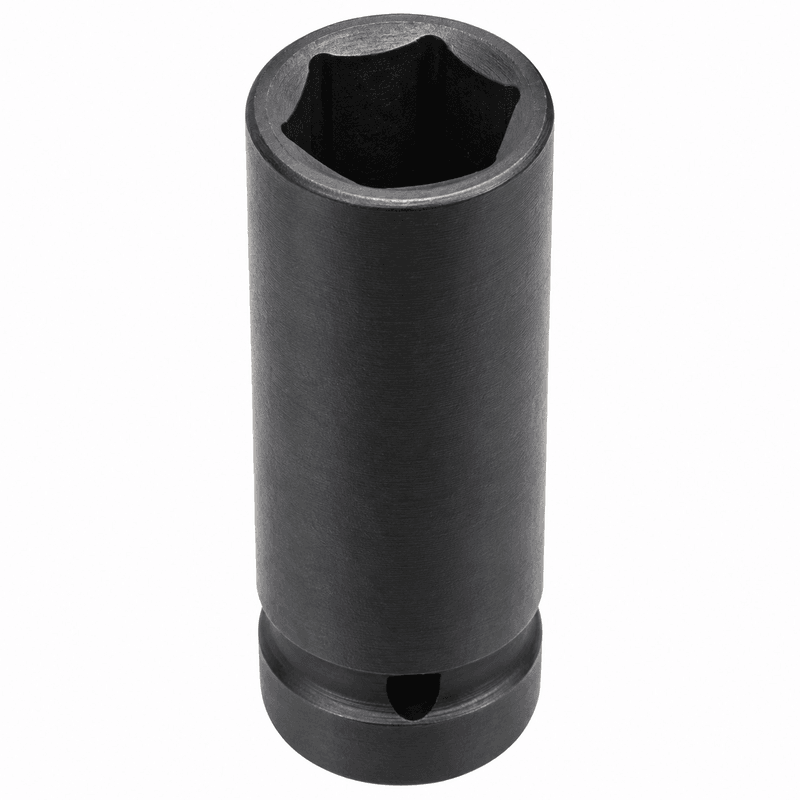

 "3/4\" Drive Deep AF Sockets – 15/16\" to 1-5/8\"")
3/4" Drive Deep AF Sockets – 15/16" to 1-5/8"
Item Code: 11634-11645
A durable range of deep AF sockets designed to provide additional reach when working with recessed, extended or difficult-to-access fasteners.
Featuring a 3/4" drive and 90mm overall length, these sockets are suited to automotive, mechanical, industrial and general workshop applications where a deeper socket profile is required.
Available in a selection of imperial sizes from 15/16" through to 1-5/8", with each socket individually coded for easy identification and product selection.
Features
- 3/4" drive
- Deep socket design for increased reach
- AF imperial sizing
- 90mm overall length
- Available in multiple sizes
- Suitable for recessed and extended fasteners
- Individual product code for each socket size
- Suitable for automotive, mechanical, industrial and general workshop applications
Specifications
- Product Code Range: 11634–11645
- Drive Size: 3/4"
- Socket Size Range: 15/16"–1-5/8"
- Type: Deep AF Socket
- Measurement: Imperial
- Length: 90mm
Product Codes & Dimensions
| Product Code | Size (inches) | Weight (g) | Diameter (mm) | Length (mm) |
|---|---|---|---|---|
| 11634 | 15/16 | 637 | 38 | 90 |
| 11635 | 1 | 645 | 40 | 90 |
| 11636 | 1-1/16 | 632 | 42 | 90 |
| 11637 | 1-1/8 | 646 | 44 | 90 |
| 11638 | 1-3/16 | 679 | 46 | 90 |
| 11639 | 1-1/4 | 736 | 48 | 90 |
| 11640 | 1-5/16 | 780 | 50 | 90 |
| 11641 | 1-3/8 | 815 | 52 | 90 |
| 11642 | 1-7/16 | 850 | 54 | 90 |
| 11643 | 1-1/2 | 882 | 56 | 90 |
| 11644 | 1-9/16 | 910 | 58 | 90 |
| 11645 | 1-5/8 | 970 | 60 | 90 |
