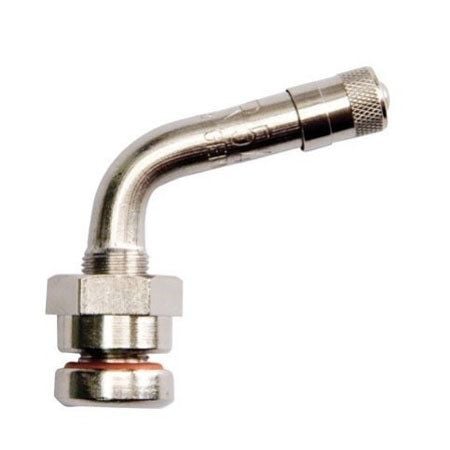

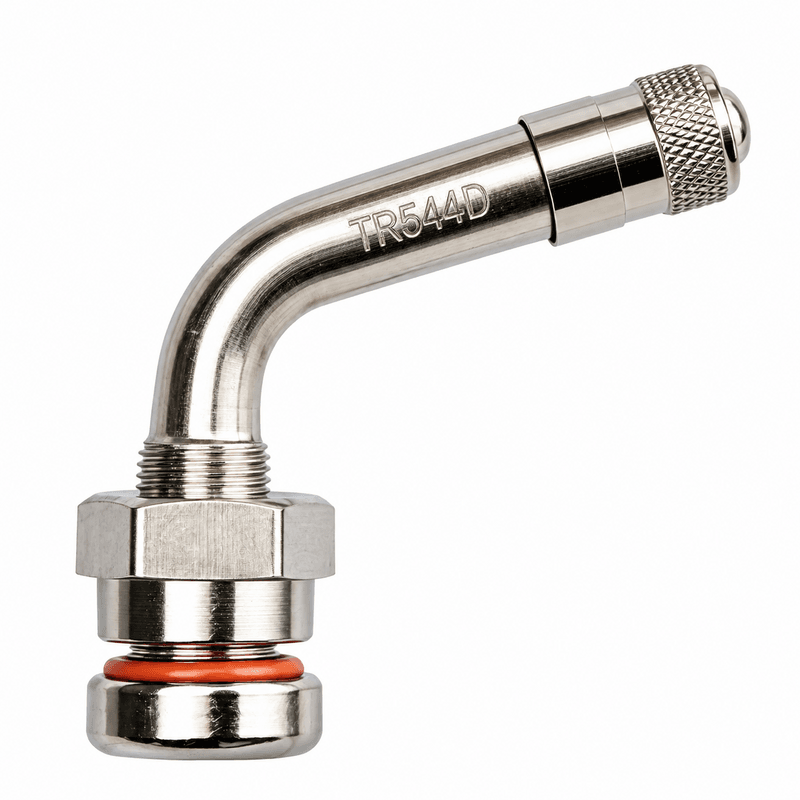

TR544D 60° Alloy Truck Tyre Valve – Suits Alcoa Aluminium Wheels

Designed for aluminium wheel applications, the TR544D features an O-ring sealing system and corrosion-resistant metal construction suitable for use with aluminium wheels. Using the correct valve is particularly important with Alcoa wheels, as incompatible valve materials can contribute to corrosion around the valve mounting area.

The compact 60° angled stem provides convenient access for tyre inflation and pressure checking while keeping the overall valve profile relatively short. This makes the TR544D particularly suitable for compatible wheel configurations where a shorter angled valve is required.

Features & Benefits:

• Professional-quality heavy-duty truck tyre valve
• TR544D valve configuration
• Designed for compatible Alcoa aluminium truck wheels
• Suits wheels with a 9.7mm valve rim hole
• 60° angled stem configuration
• Compact 1.88" overall length
• 0.98" effective length
• O-ring sealing system
• Designed for use with aluminium wheels
• Helps avoid corrosion associated with incompatible valve materials
• Angled design provides convenient access for inflation and pressure checking
• Heavy-duty metal construction
• Secure clamp-in installation
• Ideal for truck tyre shops, fleet workshops and heavy vehicle servicing

Specifications:

• Item Code: 24250
• Valve Type: TR544D
• Product Type: Alloy Tubeless Truck Tyre Valve
• Stem Configuration: Angled
• Stem Angle: 60°
• Effective Length: 0.98" (approximately 25mm)
• Overall Length: 1.88" (approximately 48mm)
• Rim Hole Size: 9.7mm
• Seal Type: O-Ring
• Wheel Application: Compatible Alcoa Aluminium Truck Wheels
• Application: Commercial Truck / Heavy Vehicle

Important: Designed for compatible Alcoa aluminium truck wheels manufactured with a 9.7mm valve rim hole. Always confirm the wheel and valve specifications before installation.
