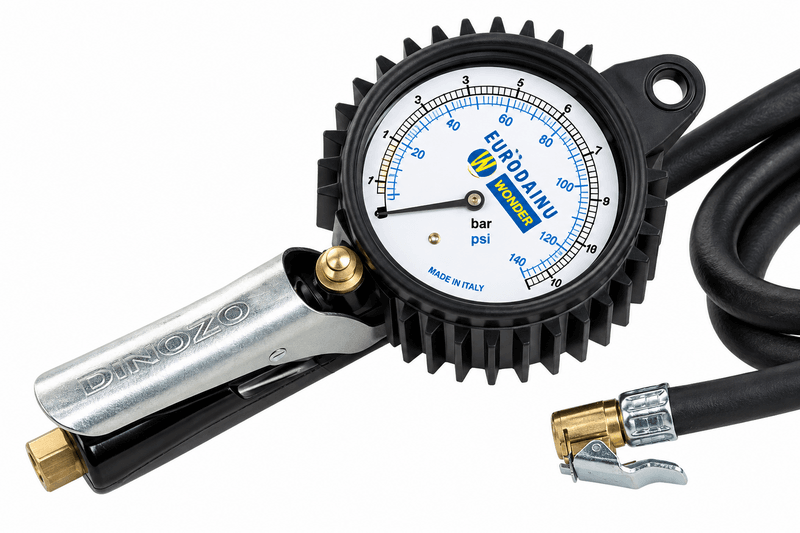

Wonder Dial Airline Tyre Inflator Gauge – 10–174 PSI
Item Code: 341991
A high-quality airline tyre inflator gauge designed for reliable pressure measurement, inflation and servicing of tyres fitted with standard valves.
Designed for dependable workshop use, the gauge provides measuring reliability and performance in accordance with the UNI EN 12645 standard. The standard dual graduated scale displays pressure in both Bar and PSI for clear and convenient readings.
Supplied with a 150cm hose for excellent reach and flexibility around the tyre, the gauge accepts a maximum air source pressure of 15 Bar and is also suitable for use with nitrogen.
Features
- Designed for standard tyre valves
- Suitable for tyre inflation and pressure checking
- Dual graduated Bar / PSI pressure scale
- Measuring reliability and performance in accordance with UNI EN 12645
- Supplied with 150cm hose
- Maximum air source pressure of 15 Bar
- Suitable for use with nitrogen
- Alternative pressure scales available on request
- Ideal for tyre shops, automotive workshops and servicing applications
Specifications
- Product Code: 341991
- Type: Airline Tyre Inflator Gauge
- Valve Compatibility: Standard Valves
- Pressure Range: 10–174 PSI
- Bar Range: 0.7–12 Bar
- Standard Scale: Dual Graduated – Bar / PSI
- Hose: No. 1961
- Hose Length: 150cm
- Maximum Air Source Pressure: 15 Bar
- Nitrogen Compatible: Yes
- Standard: UNI EN 12645
Optional Scale Configurations
- Dual Graduated: kPa x 100 (0.7–12) / PSI (10–174)
- kPa x 100 Only: 0.7–12
