Bias Ply Patches
Item Code: VD-01 to VD-10L

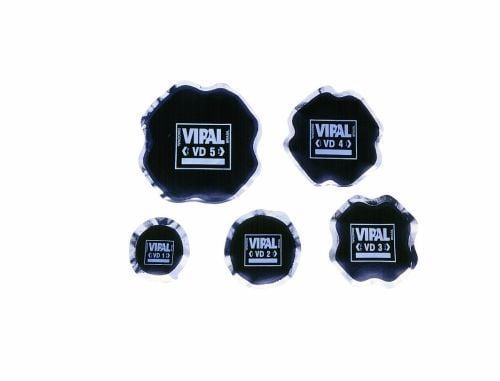

VD Patches (Vipal Diagonal)
VD patches are used for repairing tread and shoulder injuries and are built to match the grain of a bias ply tyre´s casing plies.
VDL Patches (Lateral Ply)
VDL patches are built to match the grain of a bias ply tyre´s casing plies. Used for repairing tyre sidewalls, the pattern on these patches match the bead´s circumference radius.
Its construction guarantees light weight, higher resistance and flexibility.
Available in multiple sizes and variations.
Please refer to chart below for product codes and specifications.
| Code | Ply | Size (mm) | Type |
|---|---|---|---|
| VD-01 | 2 | 60 | Round |
| VD-02 | 2 | 80 | Round |
| VD-03 | 2 | 100 | Diagonal |
| VD-04 | 2 | 130 | Diagonal |
| VD-05 | 4 | 165 | Diagonal |
| VD-05L | 4 | 165 | Sidewall |
| VD-06 | 6 | 240 | Diagonal |
| VD-06L | 6 | 240 | Sidewall |
| VD-07 | 6 | 295 | Diagonal |
| VD-07L | 6 | 295 | Sidewall |
| VD-08 | 8 | 345 | Diagonal |
| VD-08L | 8 | 345 | Sidewall |
| VD-09 | 8 | 390 | Diagonal |
| VD-09L | 8 | 390 | Sidewall |
| VD-10 | 8 | 455 | Diagonal |
| VD-10L | 8 | 455 | Sidewall |
