Australian Made Extended Wheel Nut Indicators – Multiple Sizes

Designed specifically for applications where conventional wheel nut indicators may be difficult to see or fit correctly, the extended design is particularly suitable for vehicles with recessed wheel nuts and trucks fitted with front wheel trims.

Each indicator securely grips the six corners of the hexagonal wheel nut. Once fitted, the indicators are aligned into an easily recognisable pattern around the wheel. If a wheel nut begins to rotate or loosen, its indicator moves with the nut, breaking the established pattern and providing an immediate visual warning that the wheel assembly requires inspection.

The extended cap-style design also covers the exposed wheel stud thread, helping protect it from dirt, road grime and other contaminants. In addition to indicating wheel nut movement, the indicators can provide a visual indication of excessive wheel-end heat associated with overheating brakes.

Features & Benefits:

• Australian made
• Extended wheel nut indicator design
• Provides continuous visual indication of wheel nut movement
• Makes a loosening or rotating wheel nut easy to identify during routine inspections
• Grips the six corners of the hexagonal wheel nut
• Indicators are aligned to create an easily recognisable visual pattern
• Movement of an individual nut breaks the established pattern
• Extended design is ideal for recessed wheel nuts
• Particularly suitable for trucks fitted with front wheel trims
• Cap-style construction covers and protects exposed wheel stud threads
• Helps protect stud threads from dirt, grime and contaminants
• Provides an additional visual indication of excessive wheel-end temperatures
• Useful for identifying potential overheating brake conditions
• Quick and easy to visually inspect during pre-start and routine vehicle checks
• Supports proactive fleet and preventative maintenance programs
• Available in multiple sizes for different wheel nut applications
• Ideal for trucks, trailers, buses, commercial vehicles and fleet applications

How They Work:

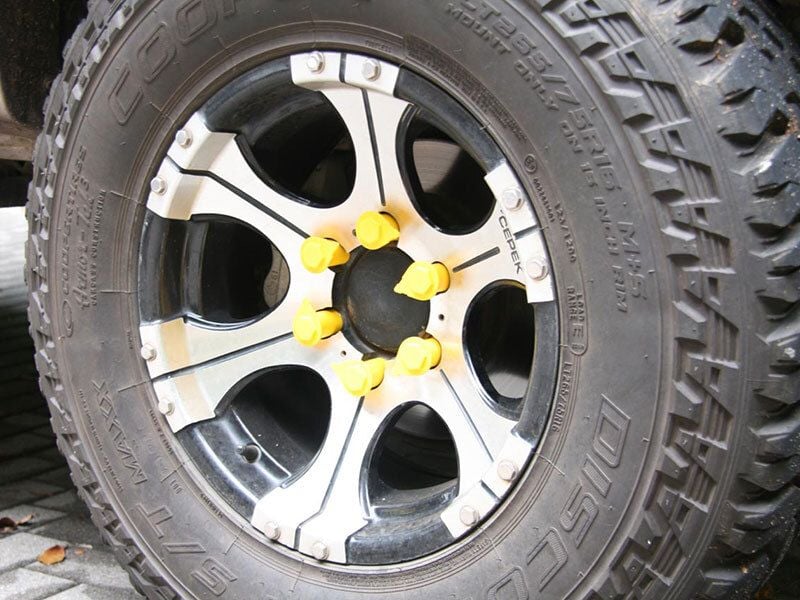

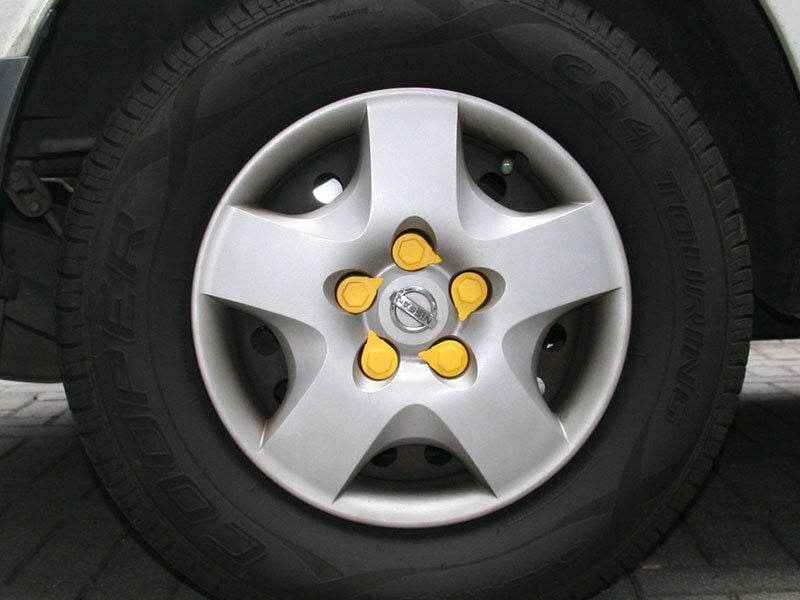

The indicators are fitted securely over the wheel nuts and aligned into a consistent pattern. If a wheel nut begins to rotate, the indicator rotates with it and becomes visibly misaligned with the surrounding indicators. This provides a clear visual warning that the wheel nut and wheel assembly should be inspected.

The extended design provides additional clearance where wheel nuts are recessed or partially concealed by wheel trims while simultaneously covering the exposed stud thread.

Specifications:

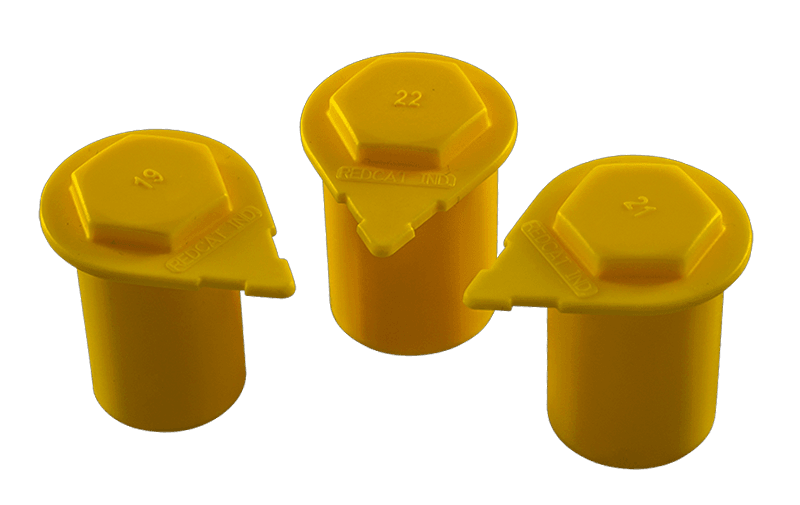

• Product Type: Extended Wheel Nut Indicator
• Country of Manufacture: Australia
• Item Code Range: WS19EXT – WS33EXT
• Design: Extended / Cap Type
• Installation: Push-Fit Over Hexagonal Wheel Nut
• Functions: Wheel Nut Movement Indication / High Temperature Indication / Stud Thread Protection
• Application: Recessed Wheel Nuts & Wheels with Front Wheel Trims
• Sizes: Multiple Sizes Available

Available Sizes:

Please refer to the product chart below for individual product codes, wheel nut sizes and available variations.
