Australian Made HexChex Multi-Size Wheel Nut Indicators – 23mm to 50mm – Yellow or Orange

Unlike conventional wheel nut indicators that are manufactured for one specific nut size, HexChex features a unique adjustable ratchet design that allows each indicator to accommodate a range of wheel nut sizes. With just three multi-size products covering nuts from 23mm through to 50mm, HexChex can significantly simplify stock management while providing greater flexibility across different vehicles and wheel configurations.

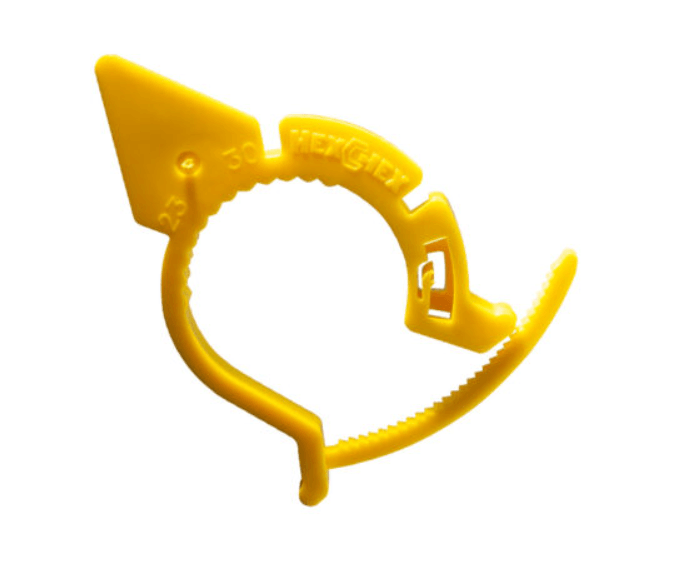

The ratchet mechanism is easily tightened by hand with no tools required. Its progressive action provides a noticeable click as the indicator is tightened, allowing the installer to feel when the mechanism is securely positioned around the wheel nut.

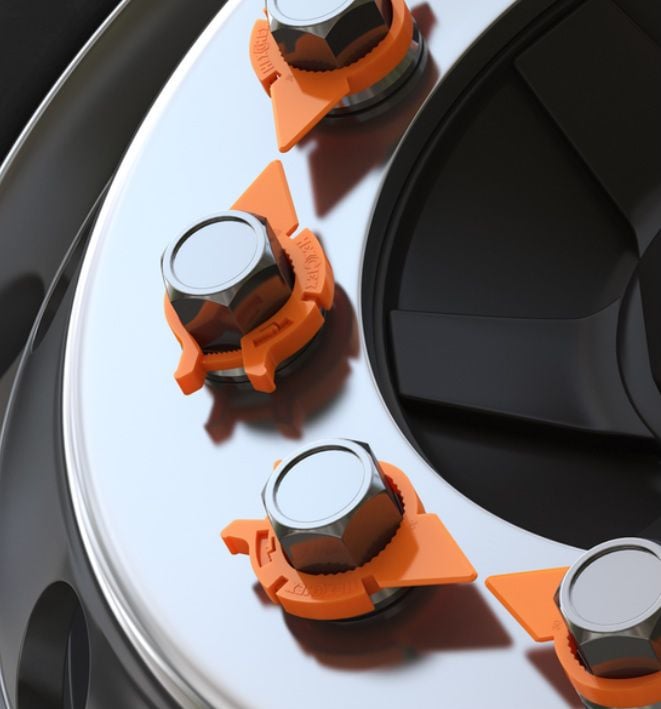

Once installed, HexChex provides an easily visible reference point for routine wheel inspections. If a wheel nut begins to rotate, the position of the indicator changes, allowing the movement to be quickly identified during a walk-around inspection.

Features & Benefits:

• Australian made
• Available in yellow or orange
• Multi-size adjustable wheel nut indicator
• Only 3 product sizes required to cover wheel nuts from 23mm to 50mm
• Suitable for both metric and imperial applications
• Unique adjustable ratchet mechanism
• Quickly secured by hand
• No installation tools required
• Progressive ratchet action provides noticeable click feedback
• Fast and easy to fit, remove and reuse
• Helps visually identify wheel nut movement during routine inspections
• Multi-size design can simplify workshop and fleet inventory requirements
• Manufactured from durable engineering polymer
• Automotive ISO material
• High dimensional stability
• Resistant to chemicals and UV exposure
• Designed for demanding Australian operating conditions
• High and low temperature resistant
• Durable and reusable
• Ideal for trucks, trailers, buses, commercial vehicles and fleet applications

Multi-Size Design:

HexChex is designed to accommodate considerably more variation than a traditional fixed-size wheel nut indicator. Its adjustable mechanism can clamp around different nut profiles within the specified diameter range, including round-edged, sharp-edged, worn, new, slightly undersized or oversized nuts and certain multi-sided or custom nut designs.

This versatility makes HexChex particularly useful for fleets and workshops servicing multiple vehicle types, reducing the number of individual indicator sizes that need to be stocked.

Temperature & Material Performance:

HexChex is manufactured from a specialised engineering polymer selected for dimensional stability, chemical resistance, UV resistance and thermal performance.

Designed for Australia's demanding operating conditions, the material is rated to perform across temperatures from approximately -50°C to over 160°C, providing durability across a broad range of commercial vehicle operating environments.

Simple Visual Wheel Monitoring:

HexChex assists routine wheel maintenance by providing an immediate visual reference during vehicle inspections. A quick walk-around can identify indicators that have moved from their established position, directing attention to wheel nuts that require further inspection.

This can make routine fleet checks quicker and help identify potential wheel fastening issues before they progress.

Specifications:

• Item Code Range: R-3038 – R-3850
• Product Type: Multi-Size Wheel Nut Indicator
• Brand: HexChex
• Country of Manufacture: Australia
• Colours Available: Yellow & Orange
• Overall Nut Size Coverage: 23mm – 50mm
• Number of Multi-Size Variations: 3
• Measurement Compatibility: Metric & Imperial
• Adjustment: Ratchet Mechanism
• Installation: Hand Tightened – No Tools Required
• Material: Engineering Polymer
• Temperature Performance: Approximately -50°C to Over 160°C
• Reusable: Yes

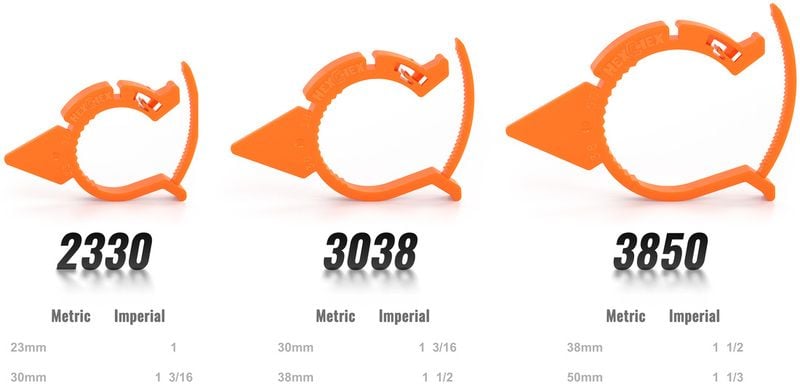

Available Sizes:

Please refer to the product chart below for the individual product codes, size ranges and colour variations.
