Pitch Circle Diameter (PCD) Measuring Gauge – 4, 5, 6 & 8 Stud
Item Code: PCD

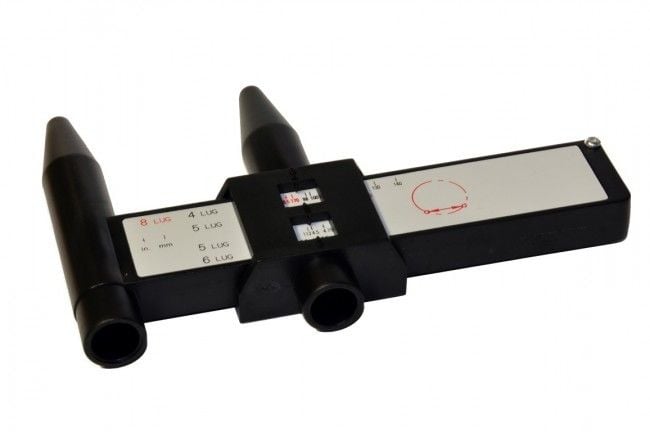

A high-quality Pitch Circle Diameter (PCD) measuring gauge designed for quickly identifying wheel and hub stud patterns across a wide range of automotive applications.
Suitable for use on steel and alloy wheels, hubs, wheel spacers and PCD adaptor kits, the gauge provides a simple and convenient method of determining PCD without complicated calculations.
Simply position the gauge into the wheel bolt holes or over the wheel studs and read the corresponding PCD measurement directly from the gauge.
Features
- Quickly identifies Pitch Circle Diameter (PCD)
- Suitable for 4, 5, 6 and 8 stud patterns
- Works with steel and alloy wheels
- Suitable for wheel hubs and stud patterns
- Can be used with wheel spacers and PCD adaptor kits
- Simple direct-reading design
- Measures both metric and imperial PCD sizes
- Ideal for tyre shops, wheel specialists and automotive workshops
Specifications
- Product Code: PCD
- Type: Pitch Circle Diameter Measuring Gauge
- Stud Configurations: 4 / 5 / 6 / 8 Stud
- Measurement: Metric & Imperial
- Applications: Wheels, Hubs, Wheel Spacers & PCD Adaptor Kits
PCD Measurements
| Stud Pattern | PCD Sizes |
|---|---|
| 4 Stud | 98, 100, 108, 110, 4.5", 120, 130, 140 |
| 5 Stud | 100, 108, 112, 4.5", 115, 120, 4.75", 5.0", 130, 135, 5.5", 150 |
| 6 Stud | 4.5", 5.0", 135, 5.5" |
| 8 Stud | 6.5", 170 |
